AC Universal Tsav Rau Cov Plaub Hau Hnav

5417 AC universal motors yog siv rau cov plaub hau hnav cov cuab yeej.Qhov loj ntawm stator lamination yog 54mm * 17mm.54mm stands rau stator lamination txoj kab uas hla, 17mm yog lub thickness ntawm stator lamination.Qhov kev ua tau zoo tuaj yeem ua raws li tus qauv, los yog nrog EMC muaj nuj nqi, lossis nrog fuse funtion lossis nrog pob ntseg yas thiab lwm yam.Nws nyob ntawm cov neeg siv khoom' xav tau los ntawm lawv lub khw hauv zos.

Cov ntaub ntawv yooj yim

• Qauv: 5417

• Hom Lub Npe: LF/Gallop

• Lub hwj chim: 100-127V / 220-240V

• Zaus: 50/60Hz

• Khoom siv: tooj liab ntshiab

• Pob: 40PCS ib lub thawv

• Shipping chaw nres nkoj: Shenzhen Port

• HS code: 8501400000

Specifications

Specifications

• Rated voltage: 220-240V

• Zaus: 50/60Hz

• Kev taw qhia kev sib hloov: Anticlockwise (CCW)

• Tsis muaj load tam sim no: 0.25A

• Tsis muaj zog load: 55W

• Tsis muaj qhov ceev: 42000RPM

• Load tam sim no: 0.83A

• Lub cev muaj zog: 83W

• Load ceev: 14500RPM

• Lub neej: 500 teev min

• Kev vibration: 10mm / s

• Suab nrov: 85dB

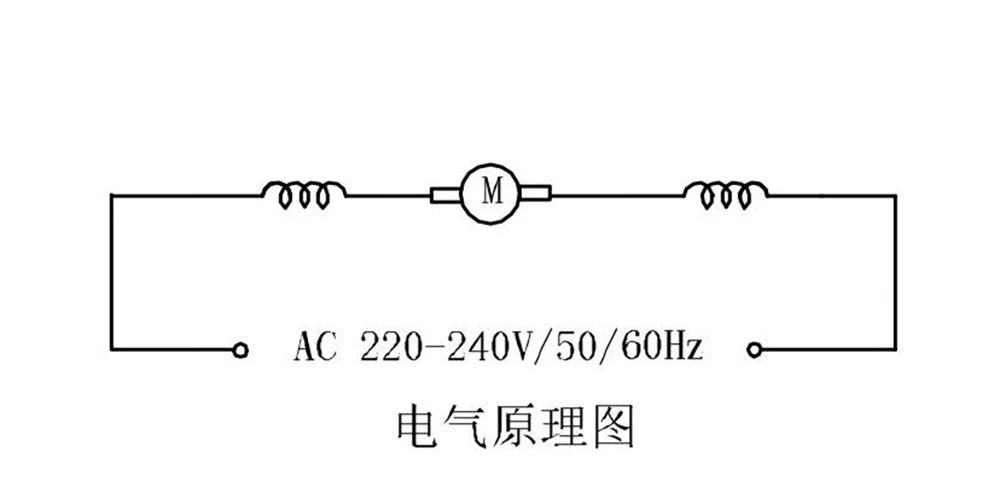

Hluav taws xob schematic daim duab

Los ntawm daim duab, nws yog tus qauv kev ua haujlwm.

Cov kev xaiv tuaj yeem yog,

• Ntxiv capacitors thiab inductance rau nws.

• Ntxiv fuse rau nws.

• Ntxiv pob ntseg rau nws.

• Ntxiv kiv cua rau nws.


• Saum plaub txoj kev xaiv yog avialbe yuav tsum sib xyaw.

Ntawv pov thawj

Lianfeng lub tuam txhab lub cev muaj zog tau txais ISO9001 kev tswj xyuas zoo.

Lianfeng motors dhau CCC, CB, CE, LVD, REACH thiab RoHS ntawv pov thawj.
